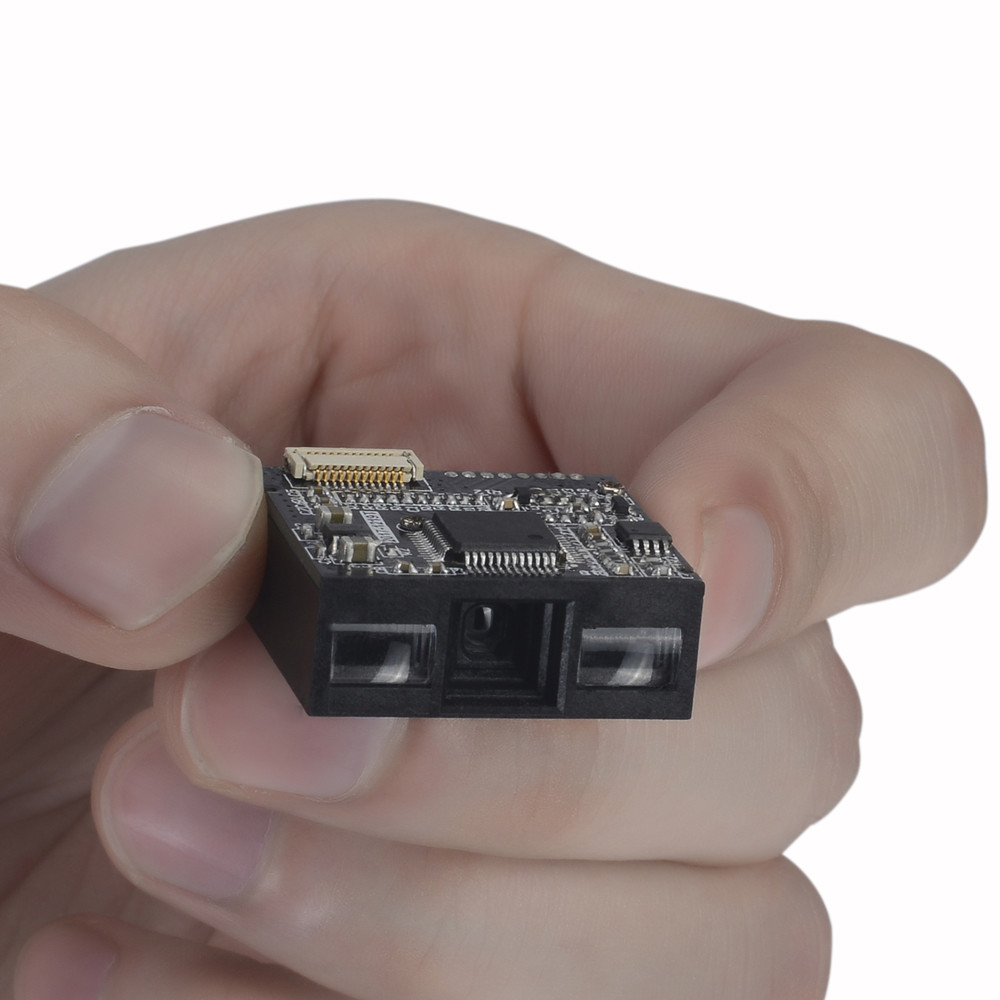

1D Barcode Scanner Module CCD Linear Sensor Reader Scan Engine M500C

1D Barcode Scanner Module CCD Linear Sensor Reader,Fast Scanning Scan Engine M500C

YHD-M500C 1D CCD Barcode Scanner Module, Equiped with 1D CCD image sensor ,Manual Trigger Mode + Auto-sensing Mode.Support secondary development, the serial port development instruction is complete to satisfy each kind of host computer control interactive demand.No Driver, plug and play. it can be used in parcel locker,supermarket locker, ticket machine, self-service vending machine, intelligent express cabinet, kiosk,locker, access control machine, factory assembly line,logistics,hospital,etc.

Features

● Support reading bar codes from screen.

● Supporting the RS232,USB,TTL,Micro USB interface.

● Scanning Speed: 280scans/second, fast scanning rate;

● 32 bit processor, More fast than 8 bit and 16 bit barcode scanners.

● Super scanning and decoding ability, can read incomplete and fuzzy codes.

● Small size, Easy to integrate, high-standard automation and can be embedded into a End devices, especially for limit space application.

Technical parameters

CPU ARM : 32-bit Cortex

Optical Source : 620nm Visible red light diode

Resolution : Ratio 1500 pixel

Imaging Sensor : CCD

Trigger Mode : Auto-sensing scanning

Indication : Buzzer & LED

Infrared induction distance : 50 - 350mm

Decoding Speed : 280times/second

Interface : Micro USB,TTL,KB,RS232,USB

Resolution : 4mil

Decoding Capability : UPC/EAN,with complementary UPC/EAN,Code128,Code39,Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Databar,etc.

International general 1D barcodes.etc

Depth of field : 40-120mm Code 39(5MIL),20-300mm EAN-13 (13MIL),25-340mm Code 39(20MIL),15-500mm Code 39(40MIL),Scan Angle Tilt ±60°, Rotate ± 65°, Deflection ±42°

Certificate :CE,FCC,ROHS,IP54,FDA,SGS

Packaging Details

Standard List: Scanner Module *1, Cable *1, Manual *1, Box *1.

Single Package Size: 123*90*42mm (USB/TTL/Micro USB) ; 120*60*120mm(RS232)

Single Gross Weight: 0.15kg(USB/TTL/Micro USB) ; 0.2kg(RS232)
